Friction Welding Machine

Introduction

Drill rod Drill pipe friction welding machine

Product Description

API Drill rod Drill pipe friction welding machine

Rotary friction welding is a solid-state process in which one part is rotated at high speed and is pressed against another part that is held stationary. The resulting friction heats the parts, causing them to forge together.

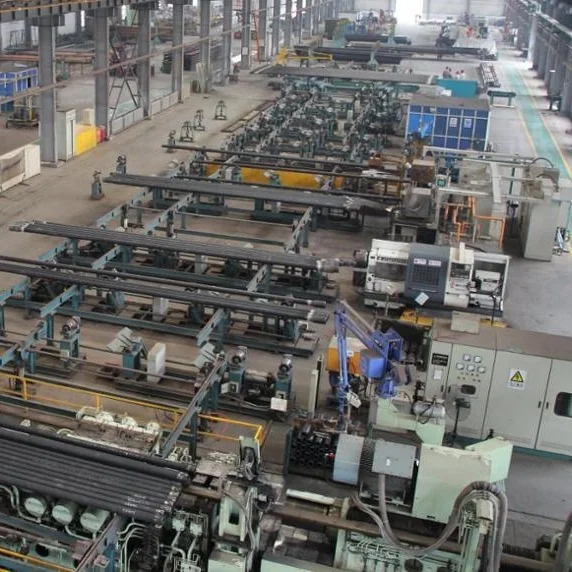

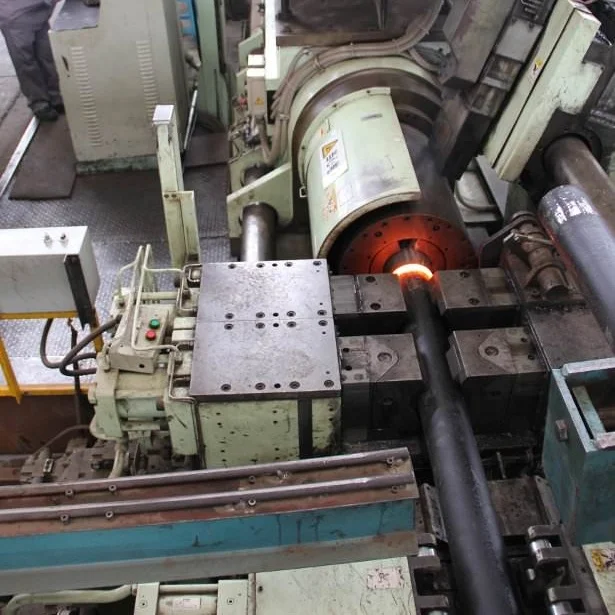

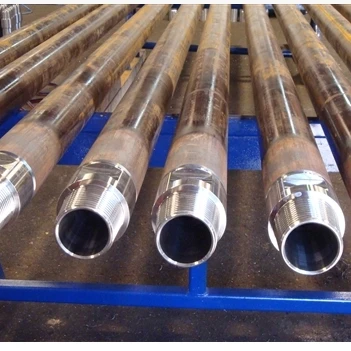

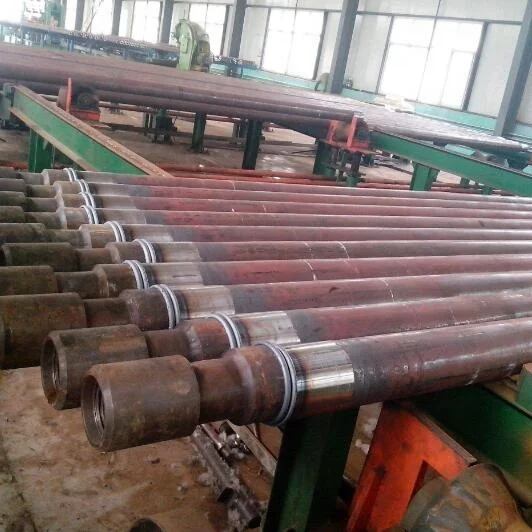

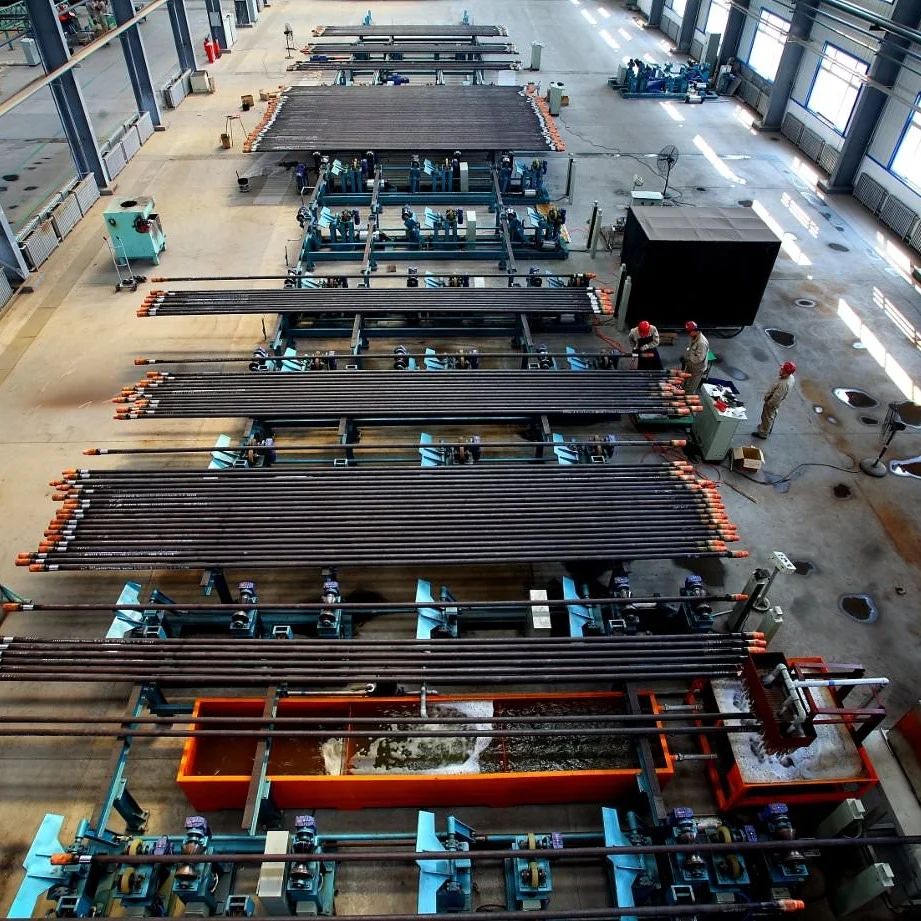

drill rod production line.jpg Friction welding of tool joint onto the drill pipe body.jpg Friction welding line.jpg Drill pipe production line.jpg

Model	Max.upset force(KN)	Max.welding area(mm2)	Welding dia.	Speed(rpm)
DBS-2	20	20-140	5--13	5000
DBS-5	50	50-260	8--18	3000
DBS-12	120	150-700	14-30	1500
DBS-20	200	150-1020	14-36	1500
DBS-30	300	314-1600	20-45	1200
DBS-40	400	500-2400	25-55	1100
DBS-63	630	960-3400	35-64	1000
DBS-80	800	1300-5000	40-75	950
DBS-100	1000	1600-6000	45-86	890
DBS-125	1250	2000-7800	50-100	600
DBS-160	1600	4300-8792	89-160	580
DBS-200	2000	5100-12500	102-189	500
DBS-250	2500	3850-15500	70-140	500
DBS-320	3200	6400-20000	90-160	380
DBS-400	4000	8000-25000	100-180	350
DBS-500	5000	8000-31400	100-200	320
DBS-700	7000	8000-44000	100-240	320

FEATURES

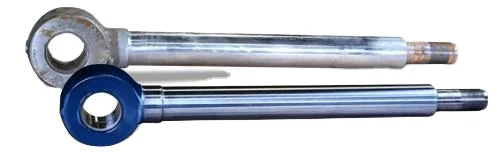

This versatile and compact friction welding machine for truck rollers was developed from experience in piston rods.Ideal design offers high thrust force from a compact size
PC quality assurance system (condition control visibility and waveform display function) for quality control.Easy operation and a high level of repeatability produce products with high stability.
Good product griping area for productivityCan be used in conjunction with commercially available loader equipment.Improves productivity.

PARAMETERS

Max.impact force 1300KN
Motor rotation speed 500RPM
Motor output 180KW
Production speed 30-60pcs/H
Gross weight 20T
Welding area 12000mm2
Welding diameter 60-140mm
