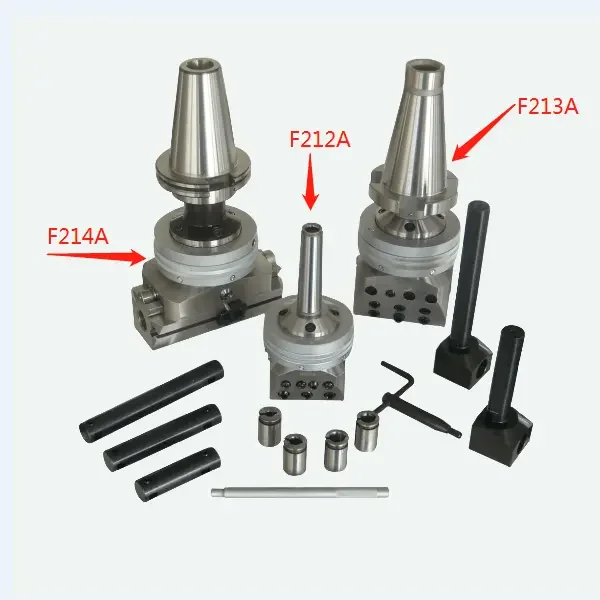

Universal Facing and Boring Head F212A, F213A, F214A for Boring Machine,milling Machine,CNC Machine

Universal Facing and Boring Head F212A, F213A, F214A for Boring Machine,milling Machine,CNC Machine

Introduction

Product Description

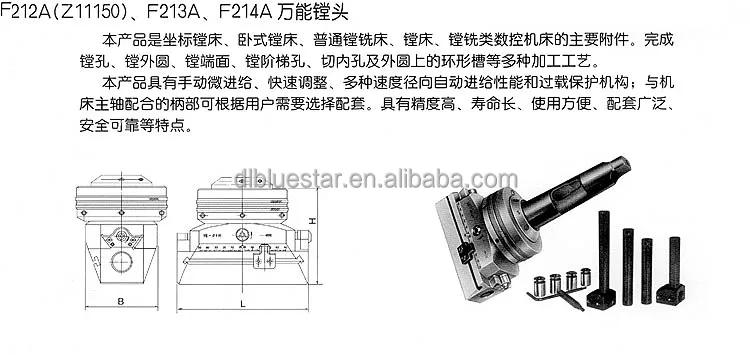

Description:

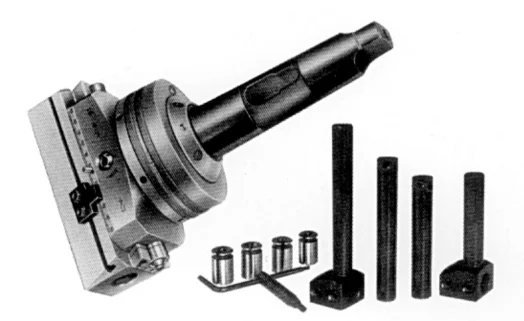

The Facing and Boring Head is a major accessory of the machine tools, such as jig boring machine,horizontal boring machine,milling
machine,CNC machine etc. It is possible to carry out such operation as facing,outside and inside diameter boring,boring step
holes,innter and outside groove cutting etc.
It has the mechanism of manual fine feed,rapid adjustment,various velocities for radial automatic feed and overload protection.
The shank which is fixed to the spindle of machine can be selected in accordance with the customer's requirement. With high
precision and easy handling,it is reliable and safe.
This Universal Facing and Boring Head can carry out automatic feed and manual feed, when carrying out automatic feed, it provides
overload protection which can stop the automatic feed.

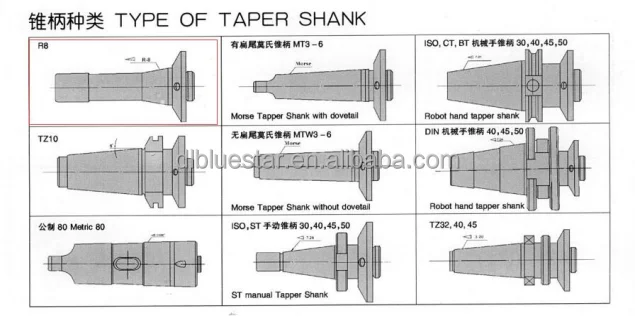

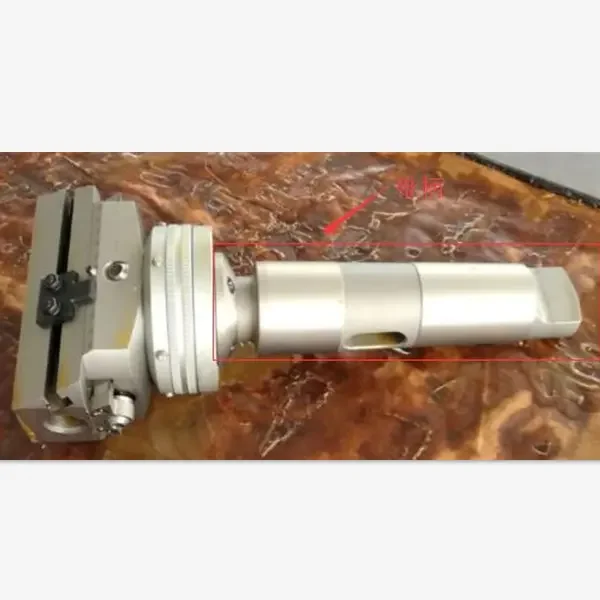

Specifications of Universal Facing and Boring Head, Taper Shank
1. Specifications of Taper Shank
R8, Morse Tapper Shank with dovetail MT3-6, Robot hand tapper shank ISO, CT, BT 30, 40, 45, 50. TZ10, Morse Tapper Shank without
dovetail MTW3-6, Robot hand tapper shank DIN, 40, 45, 50.
Metric 80, ST manual Tapper Shank(ISO, ST 30,40,45,50), TZ32, 40, 45

2. Specifications of Universal Facing and Boring Head

Model	F212A	F213A	F214A
Item No	576212	576213	576214
Max facing and boring dia mm	150	350	450
Max stroke of slide mm	±15	±25	±50
Fine feed per graduation mm	0.005	0.005	0.005
Manual feed per revolution mm	2	3
Self-acting feed per revolution mm	0.02, 0.04, 0.06, 0.08, 0.10, 0.12	0.03, 0.06, 0.09, 0.12, 0.15, 0.18
Dia of tool post holes in slide mm	18	22

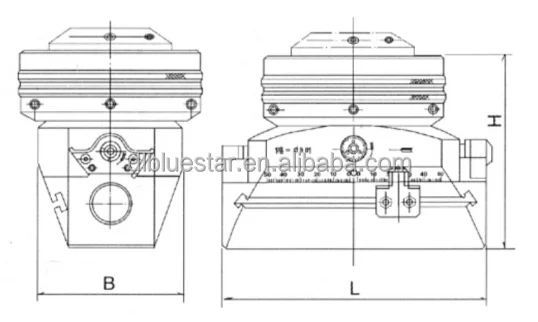

Max dia of slide D(mm)	90	120	168
Height of head without shank H(mm)	87.5	118
Weight of head without shank (kg)	2.9	6.1	7.8
The length of sliding block L(mm)	75	105	160
The width of sliding block B(mm)	70	90	90
ID of bushing(mm)	4,8,12	8,10,12,14

Taper Shank	Item No
R8	576010
MT3	576015
MT4	576020
ISO30	576025
ISO40	576030
ISO50	576035

Specification

item	value
Place of Origin	China
Condition	New
Applicable Industries	Manufacturing Plant, Retail, Construction works , Energy & Mining
Weight (KG)	19
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Not Available
Marketing Type	Hot Product 2019
Warranty	1 Year
Core Components	Bearing, Gear

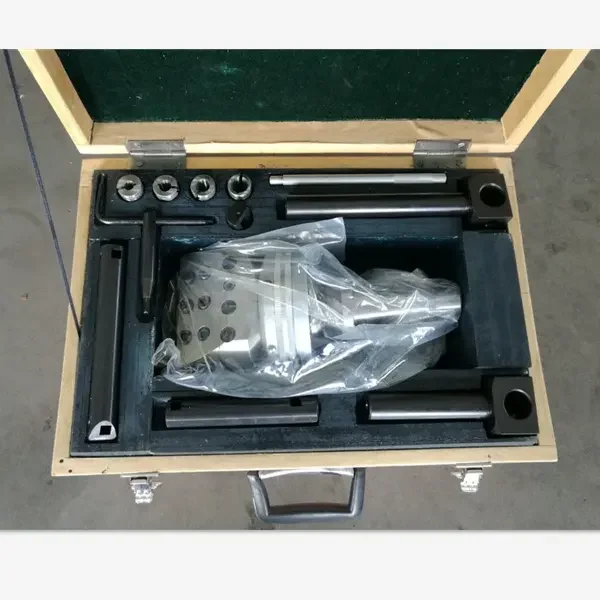

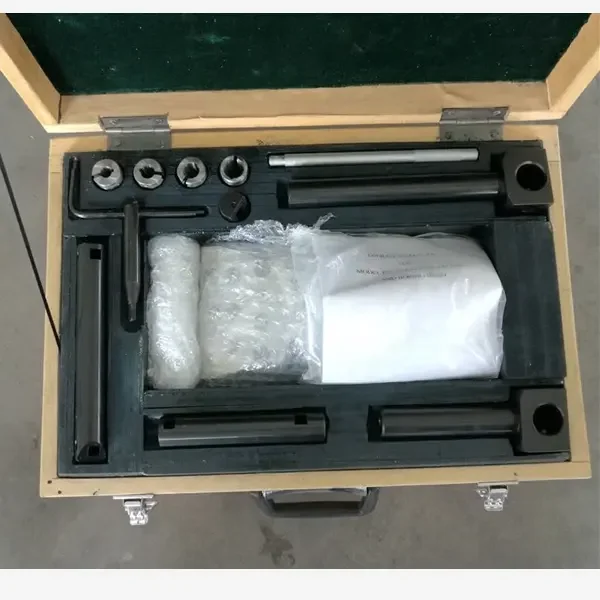

Packing & Delivery

plastic tube and pallet
