Track Rollers Friction Welding Machine

Introduction

TRACK ROLLERS FRICTION WELDING MACHINE FRICTION WELDER

Product Description

FRICTION WELDING MACHINE FRICTION WELDER

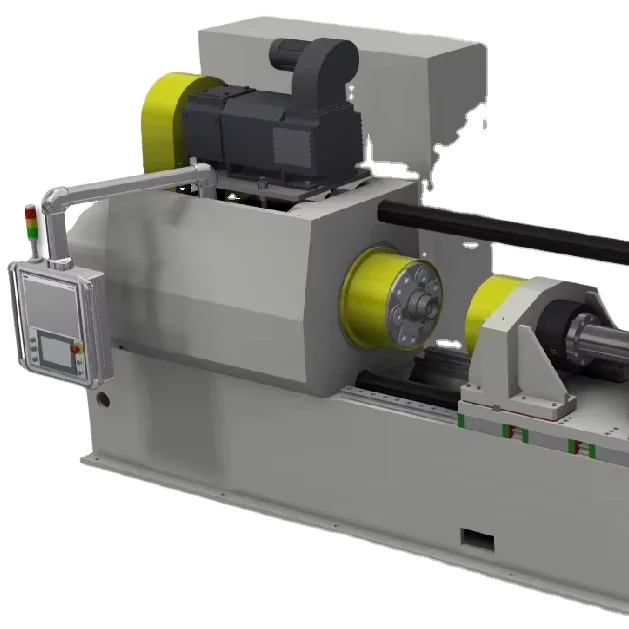

Track Rollers Friction Welding Machine

Friction welding provides a high-strength, cost-effective solution to join a shaft and turbine together. The result is complete metal fusion without the need for fluxes, fillers, gasses, or an external heat source. The solid-state process requires minimal joint preparation and eliminates the possibility of porosity or slag inclusion. The narrow heat-affected zone of the weld area protects the molecular integrity of both components. This bonding method offers consistent and repetitive results with faster production turn-around.

Cost savings result by reducing the amount of raw material, machining, and tooling required to produce a completed part. Design flexibility provides turbine construction from one metal and shaft selection from a lower cost stock or vice versa. The joining of dissimilar metals is possible where conventional methods may not work.

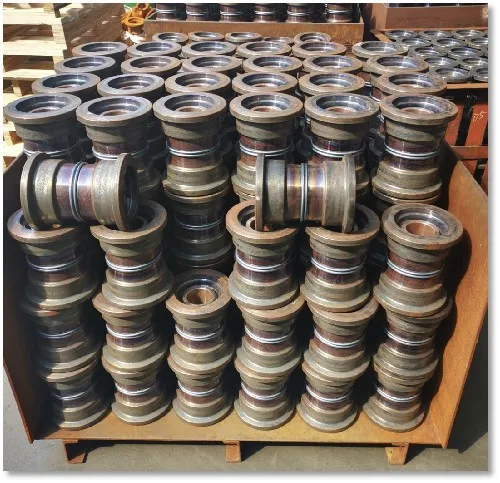

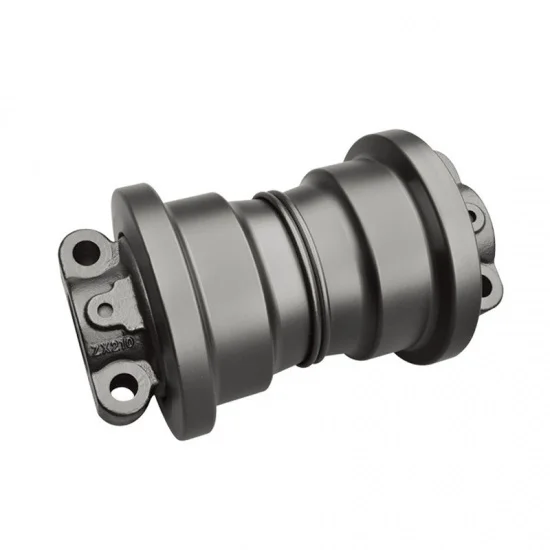

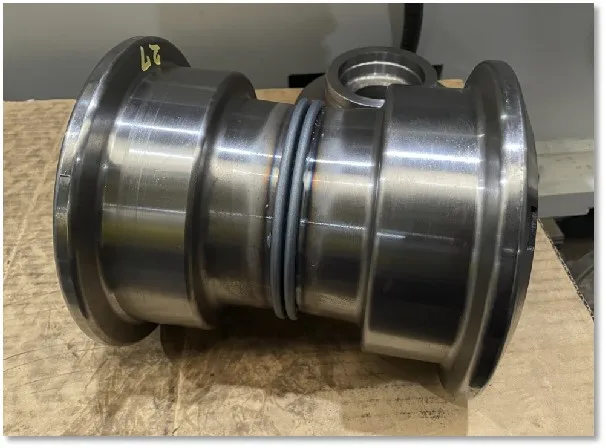

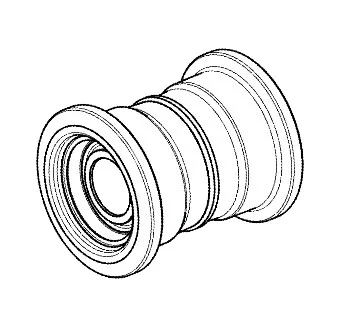

track roller.jpg track rollers.jpg track rollers-1.jpg track roller welding.jpg

Model	Max.upset force(KN)	Max.welding area(mm)	Welding dia.	Speed(rpm)
DBS-2	20	20-140	5-13	5000
DBS-5	50	50-260	8-18	3000
DBS-12	120	150-700	14-30	1500
DBS-20	200	150-1020	14-36	1500
DBS-30	300	314-1600	20-45	1200
DBS-40	400	500-2400	25-55	1100
DBS-63	630	960-3400	35-64	1000
DBS-80	800	1300-5000	40-75	950
DBS-100	1000	1600-6000	45-86	890
DBS-125	1250	2000-7800	50-100	600
DBS-160	1600	4300-8792	89-160	580
DBS-200	2000	5100-12500	102-189	500
DBS-250	2500	3850-15500	70-140	500
DBS-320	3200	6400-20000	90-160	380
DBS-400	4000	8000-25000	100-180	350
DBS-500	5000	8000-31400	100-200	320
DBS-700	7000	8000-44000	100-240	320
