The linear scales are available in measuring lengths from 370 to 3000mm.

Get a Quote

Introduction

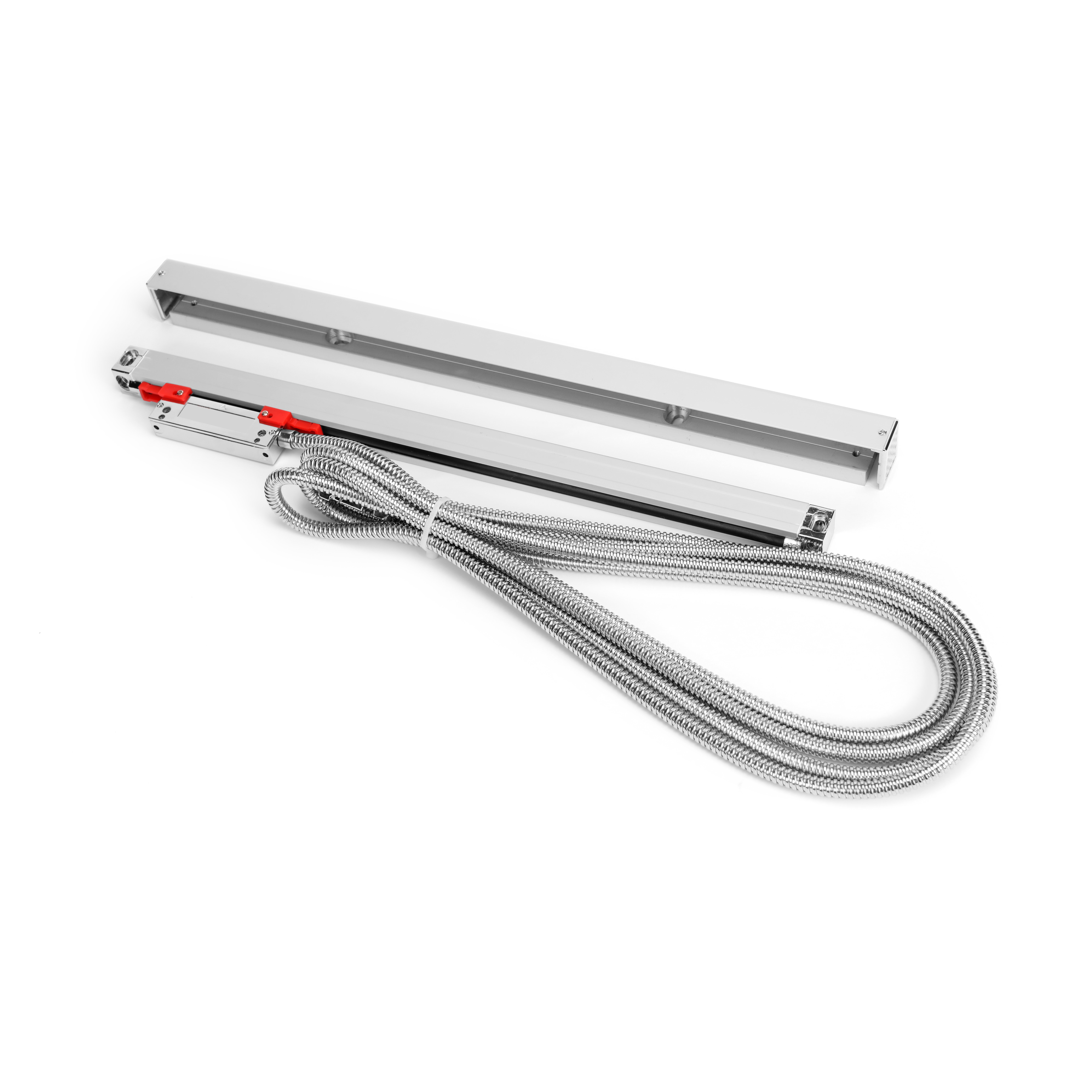

副图3.jpgProduct details description

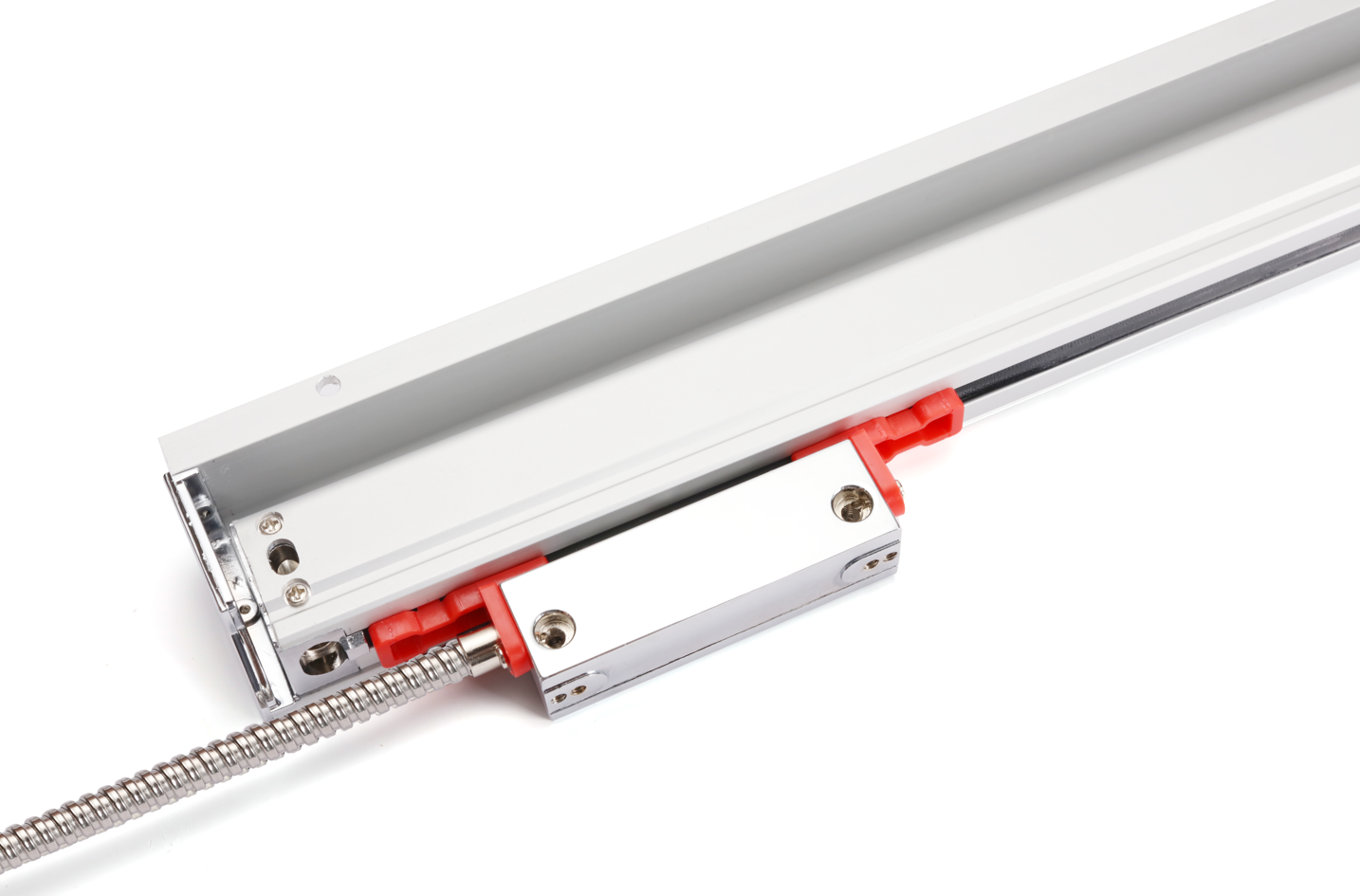

  1. NSK Japanese, five bearing 45° sliding structure for a smooth and accurate movement along the length of the scale
  2. Glass scale with 5μm resolution
  3. Scale body made from extruded Aluminium with wiper seals providing IP54 protection

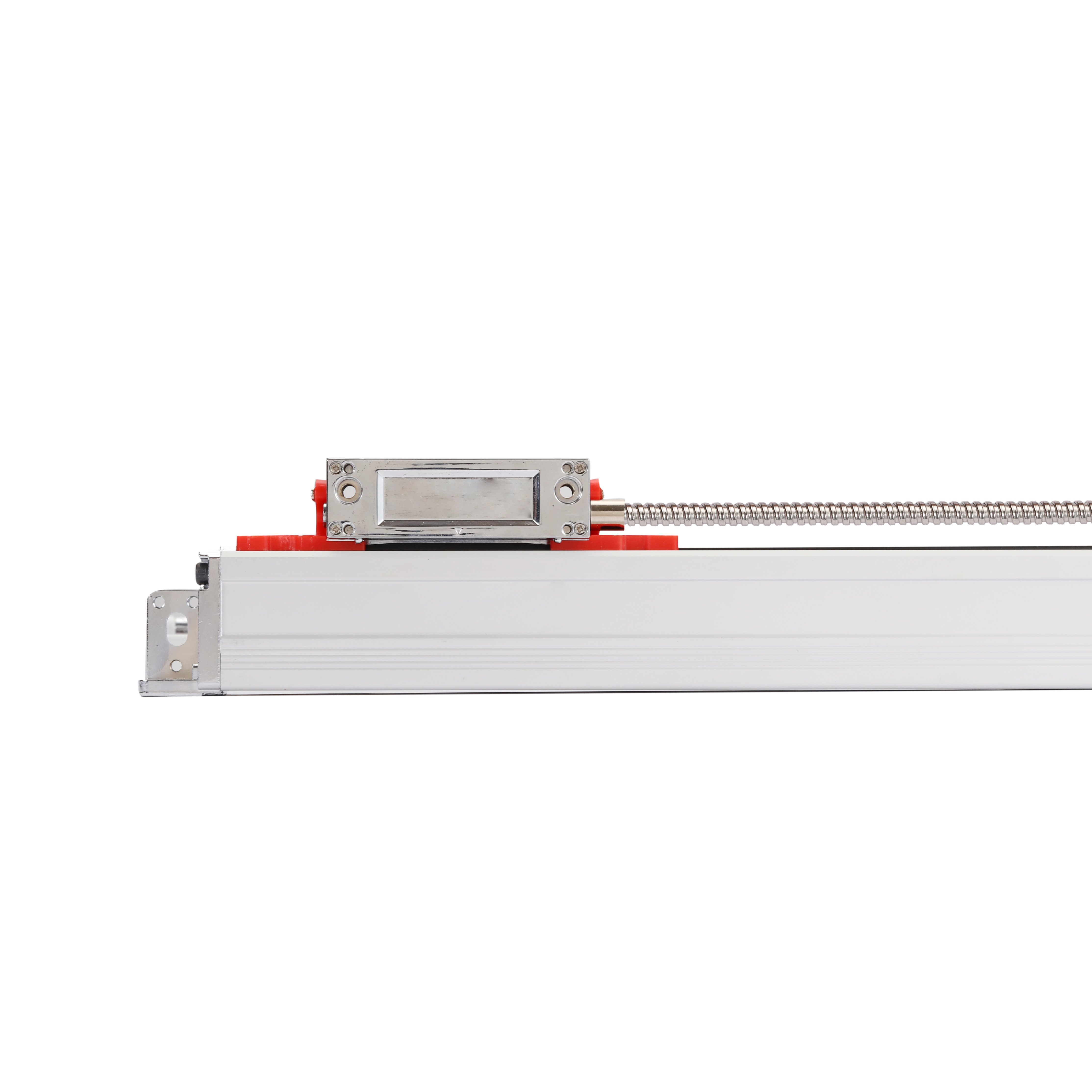

  4. Compact 18 x 20mm (W x H) section, ideal choice for applications with limited space.

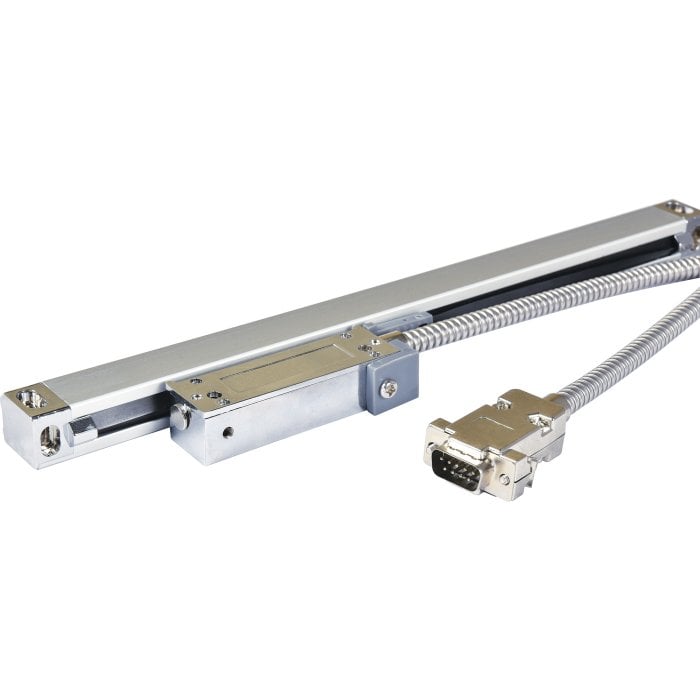

  5. 3m connection cable with 9 pin D-Sub connector


Product Specifications Table

Model No. 112S-120/170/220/270/320 112M-370/420/470/520/570/620/720/920/1020 112L-1200/1500/3000
Travel-maximum 120/170/220/270/320 370/420/470/520/570/620/720/920/1020 1200/1500/3000
Overal length(L) 232/282/332/382/432 476/526/576/626/676/726/826/1026/1126 1370/1670/2170/3170
Grating pitch 20μm(0.02mm) 20μm(0.02mm) 20μm(0.02mm)
Accuracy ±0.005mm,±0.01mm/M ±0.005mm,±0.01mm/M ±0.005mm,±0.01mm/M
Output signal 5V TTL 5V TTL 5V TTL
Working temperature -10℃-60℃ -10℃-60℃ -10℃-60℃
Maximum speed 60M/Min 60M/Min 60M/Min
Reference point Every 50mm Every 50mm Every 50mm
Backing support plate Yes Yes Yes
