Making the right selection for a tool holder in a specific CNC milling operation is very important. This is why I will take you through CNC milling tools and tool holders, in a way that will ensure that you make the right choices for machining operations.
CNC Tool Holders
To recap, CNC tool holders are portions of equipment that are used to grasp the tools that are meant to be used for cutting during a miling operation. Each holder has it’s distinct features and is paired with a specific tool. The attachment of the tool holder must be joined to precise systems which are rigid and have minimal vibration. On the other hand, the cutting tool holder device systems must be free. As such, the systems must be resilient. Therefore, the operator’s productivity is achieved when there is a proper comprehension of the differences to assist countering the available options.
Tool Holders In Use
The more common tool holders for CNC milling comprise the following:
-

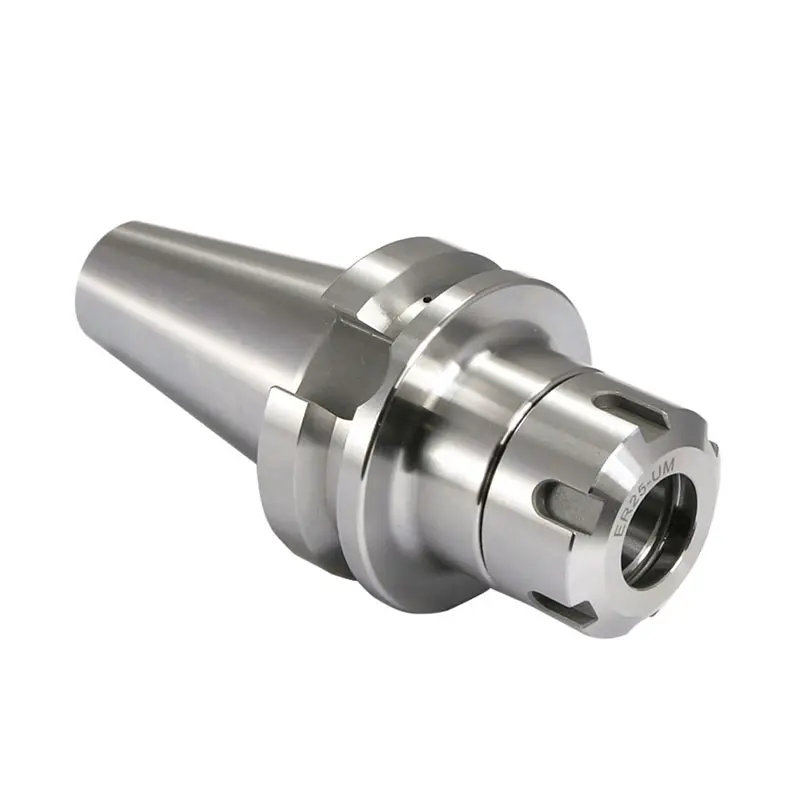

Collet Chucks: Collet chucks are a type of broad based tool holders that, unlike other chucks, are immune to delicate equipment damage. Moreover, collet chucks are compatible with rotary tools that can be driven at high speeds.
-
End Mill Holders: This type of holder is specific for end mills and is known to offer robust hold and support which is very important for heavy-duty cuts.
-
Tapered Tool Holders. CAT and BT taper holders are among the most widely used holders and are compatible with almost all CNC machines. Their taper holders’ reliability and streamlined design enhance the user experience with the CNC machines.
-
Shrinking Tool Holders. These holders are well known for the means of gripping a tool by thermal expansion. The tool gripping offered is remarkable. These tool holders are very accurate and show very low amounts of runout.
Considering Matching With CNC Milling Machine Tool Holders
Like any piece of equipment, a tool holder performs optimally when matched with a CNC milling machine tool holder with a preset tool holder. Each of the the tool holder’s clamps either assists or impedes the tool’s operation. A good example is collet chucks, which are tailored to work with tools of smaller diameters, and are incapable of accommodating larger, stability seeking end mill tool holders. As in all cases, equipment selection is led by the tools and the machines.
Criteria For Tool Holder Selection
These relate to selection of a tool holder
-
A Tool’s Dimensions: The tool holder has to be a mirror of the size of the tool.
-
Construction Materials: Tools need always to be matched with the type of material to be worked on. Also, some materials with a tool’s feed and speed do best when a certain tool holder is used.
-
Conditions of Work: The expected temperature and humidity, and the nature of workpiece materials drive selection of the tools to be matched with the workpieces.
-
Expenses: A tool holder’s quality and price will determine the performance of CNC milling machines which, in turn, drives the expenses.
Enhanced Performance Comes with Spending, However, Keeping Expenses Within A Budget is Difficult
The Most Recent Updates in CNC Tool Holders
The tool holders industry is just as vibrant as CNC milling. The newest developments in smart manufacturing as well as higher levels of automation necessitate the separate CNC machines to be integrated. In addition, the tool holders have to be more sophisticated to manage control and damping on CNC machine vibrations. If you comprehend the vibrations on the CNC side of things, then you have a leg up on the competition in refinement of the CNC milling process.
The CNC milling processes and their efficiencies are dependent on the level of automation with the tool holders and thus their selection. The processes and selection of tool holders and their milling counterparts are important to the refinement of the process in machining. These factors and many more should be aggressively centered on in order to improve the competition. A few calculated changes to the business strategy focusing on tool holders will improve efficiency and greatly smooth operations.
